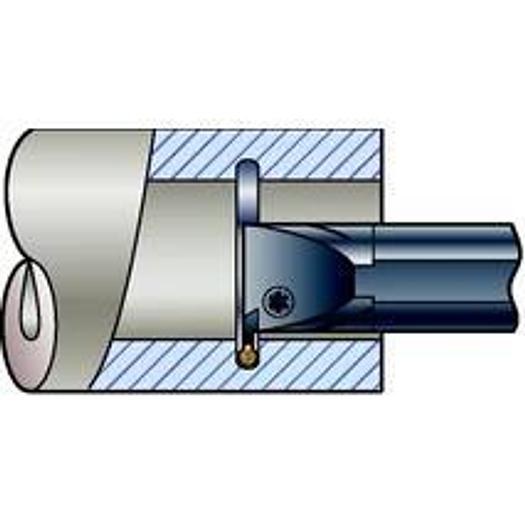

Internal grooving

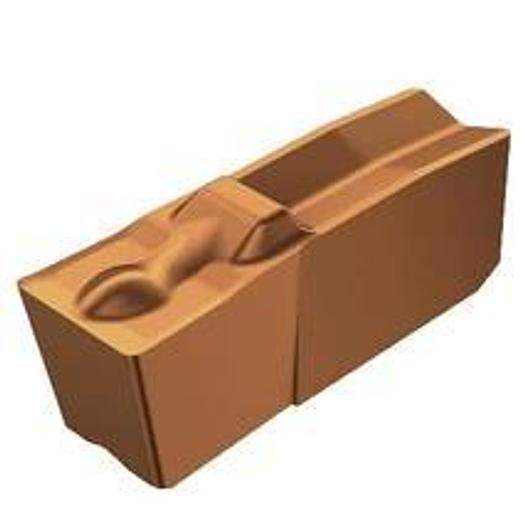

T-Max® Q-Cut indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 7.0000000000000007E-2 mm/r
• Main clearance angle (AN): 11 deg
• Manufacturer item number: N151.3-300-30-4G 1145
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.3 -size 30
• Cutting direction (HAND): N
• Grade: 1145
• Chip breaker, manufacturer designation (CBMD): 4G
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 150~185 m/min
• vc min: 130~95 m/min
• vc rec: 115~145 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.2 °
• Grade: 1145
• All ISO application areas: P|M|K
