Profile turning

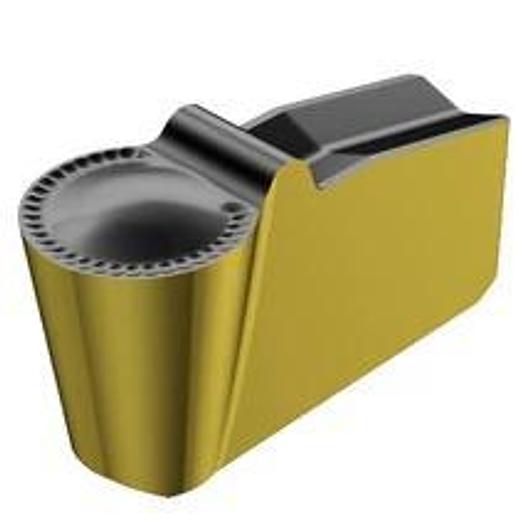

T-Max® Q-Cut indexable insert for profile turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius (RE): 3.175 mm
• fnx max: 0.23999999999999999 mm/r
• fnx min: 0.12 mm/r
• fnx rec: 0.20000000000000001 mm/r
• fnz max: 1.1000000000000001 mm
• fnz min: 0.29999999999999999 mm
• fnz rec: 0.70999999999999996 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's item number: N151.2-A250-50-5P 4225
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.0508 mm
• Cutting length, max. (APMX): 2.9 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 50
• Cutting direction (HAND): N
• Grade: 4225
• Chip breaker, manufacturer's designation (CBMD): 5P
• Grooving width, nominal dimension (CW): 6.35 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.0508 mm
• vc max: 165~215 m/min
• vc min: 135~170 m/min
• vc rec: 145~185 m/min
• Material classification level 1 (TMC1): K~P
• Corner radius R: 3.175 mm
• Chip breaker manufacturer designation CBM: 5P
• Grade: 4225
• All ISO application areas: P|K
