Profile turning

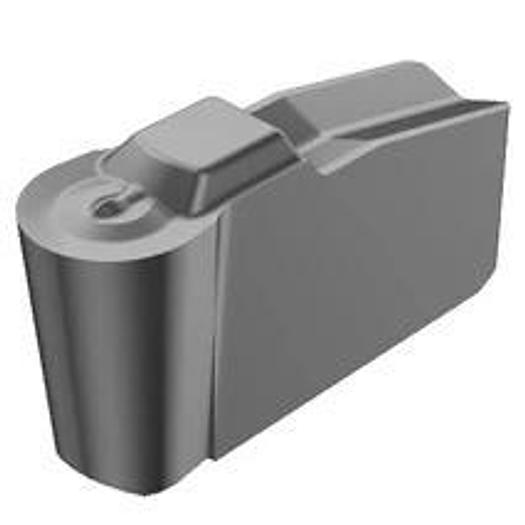

T-Max® Q-Cut indexable insert for profile turning

• Application Area: TP
• Corner radius (RE): 2.5 mm
• fnx max: 0.19 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.72999999999999998 mm
• fnz min: 0.37 mm
• fnz rec: 0.52000000000000002 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N151.2-500-40-4P H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 2 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
• Cutting direction (HAND): N
• Grade: H13A
• Chip breaker, manufacturer's designation (CBMD): 4P
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 17~1900~70~80 m/min
• vc min: 15~190~65~70 m/min
• vc rec: 15~1500~65~75 m/min
• Material classification level 1 (TMC1): K~M~N~S
• Corner radius R: 2.5 mm
• Chip breaker manufacturer designation CBM: 4P
• Grade: H13A
• All ISO application areas: M|K|N|S
