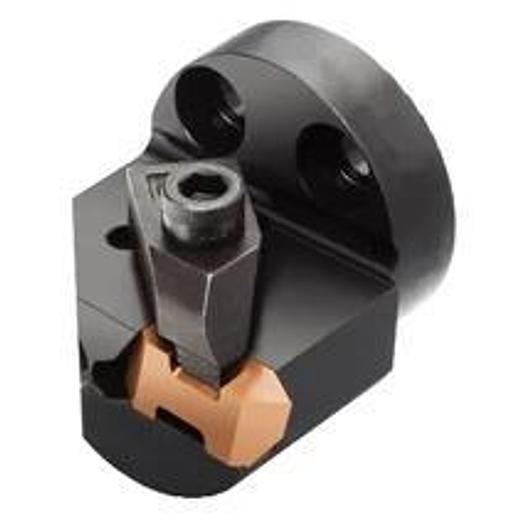

TopLock cutting head

Top-Lok cutting head for piercing

• Adapter interface machine direction (ADINTMS): SL head (screw mounted) -size 40
• DCONMS: 40 mm
• Functional width (WF): 27.9908 mm
• Functional length (LF): 40 mm
• Manufacturer's ArtNo: 570C-TLER-40-4
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Body diameter (BD): 40 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 40 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 6.35 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 4L (TLG4L)
• Adapter interface machine direction ADINTM: SL head (screw mounted) -size 40
• Cutting depth max CD: 6.35 mm
• Mounting diameter: 40 mm
• Functional width W: 27.9908 mm
