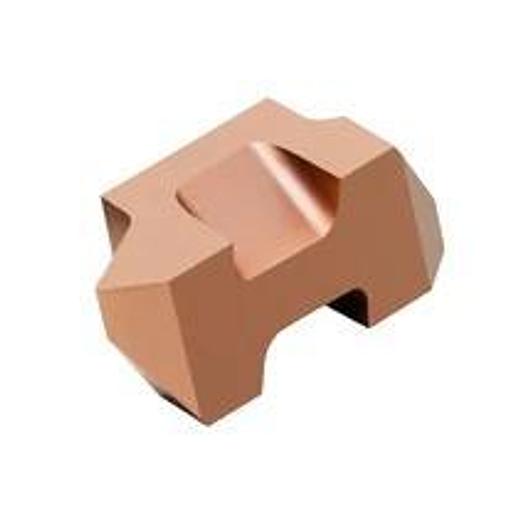

TopLock cutting plates

Top-Lok indexable insert for thread turning

• Coating Process Type: PVD
• Corner radius (RE): 0.076 mm
• Number of gears per inch, max. (TPIX): 44
• Number of gears per inch, min. (TPIN): 12
• Thread type (THFT): VP60

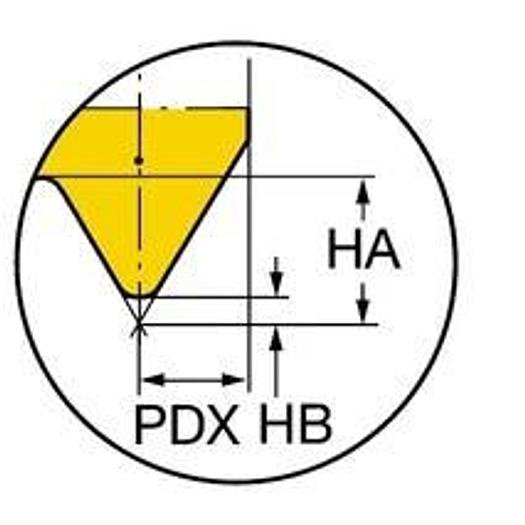

• Thread height, theoretical (HA): 1,575 mm
• Thread cutting part, application (TTP): EXT_INT
• Thread pitch, max. (TPX): 2 mm
• Thread pitch, min.(TPN): 0.6 mm
• Manufacturer's ArtNo: TLTF-2R 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Profile distance X(PDX): 2,794 mm
• Cutting profile type (TPT): P
• Cutting edge height (S): 5.5626 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Top-Lok -style 2R
• Cutting direction (HAND): R
• Grade: 1125
• Substrate Type: WC
• Number of teeth (NT): 1
• Thread type THF: VP60
• Cutting edge height: 5.5626 mm
