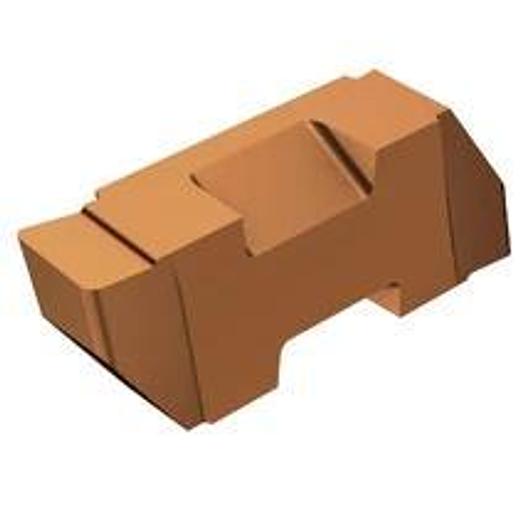

TopLock cutting plates

Top-Lok indexable insert for grooving

• Coating Process Type: PVD
• Corner radius, left (REL): 0.1905 mm
• Corner radius, right (RER): 0.1905 mm
• Main clearance angle (AN): 10 deg
• Manufacturer's article number: TLG-3088L 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.0254 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Top-Lok -style 3L
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 2,388 mm
• Grade: 1125
• Grooving width, nominal dimension (CW): 2.2352 mm
• Substrate Type: WC
• Lower cutting width tolerance (CWTOLL): -0.0254 mm
• Grooving width nominal dimension C: 2.2352 mm
• Grade: 1125
• Corner radius right RE: 0.1905 °
• All ISO application areas: P|M|K|S
