CoroCut QD shank tools - inch version

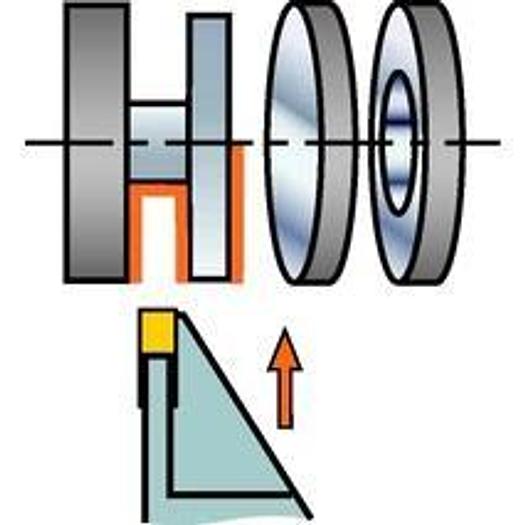

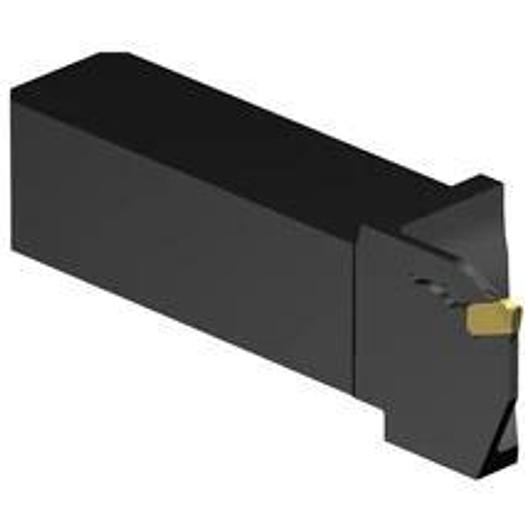

CoroCut® QD QS shank tool for parting and grooving

• Cutting diameter (CUTDIA): 50.8 mm
• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 1 x 1
• Functional width (WF): 25.9 mm
• Functional height (HF): 25.4 mm
• Functional length (LF): 111 mm
• Manufacturer's ArtNo: QS-QD-LFF1000C16D
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Coolant inlet, thread size (CNT): G 1/8-28
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 52.4 mm
• Minimum cantilever length (OHN): 27 mm
• Shaft width (B): 25.4 mm
• Shaft height (H): 25.4 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 25.4 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size F (QD-NF-0250-0002-CM)
• Functional width W: 25.9 mm
• Adapter interface Machine direction ADINTM: Rectangular shank -inch: 1 x 1
• Functional length L: 111 mm
