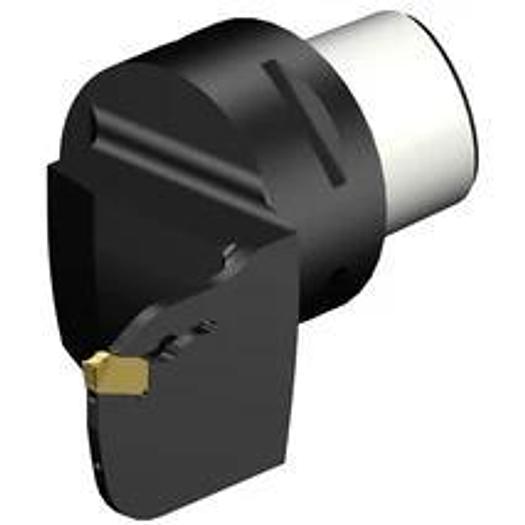

CoroCut QD cutting heads for parting and grooving

SANDVIK CC-COROCUT QD with HP

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
• Bore diameter, min.(DMIN2): 151 mm
• DCONMS: 40 mm
• Functional width (WF): 27 mm
• Functional length (LF): 60 mm
• Manufacturer item number: C4-QD-RFF25C27060A
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 60 mm
• Minimum cantilever length (OHN): 60 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 25 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size F (QD-NF-0250-0002-CM)
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C4
• Cutting depth max CD: 25 mm
• Mounting diameter: 40 mm
• Functional width W: 27 mm
