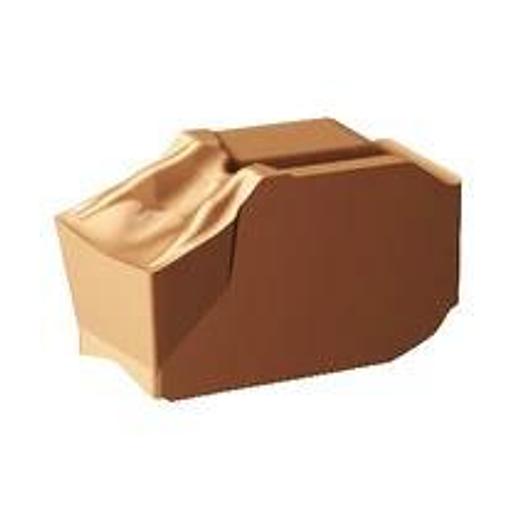

CoroCut QD parting inserts

CoroCut® QD parting insert

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.20000000000000001 mm/r
• fnx min: 7.0000000000000007E-2 mm/r
• fnx rec: 0.10000000000000001 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NG-0318-0002-CM 1145
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size G
• Cutting direction (HAND): N
• Grade: 1145
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 3.175 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 130~165~18 m/min
• vc min: 115~14~85 m/min
• vc rec: 100~135~16 m/min
• Material classification level 1 (TMC1): M~P~S
• Grooving width nominal dimension C: 3.175 mm
• Corner radius right RE: 0.2 °
• Grade: 1145
• All ISO application areas: P|M|S
