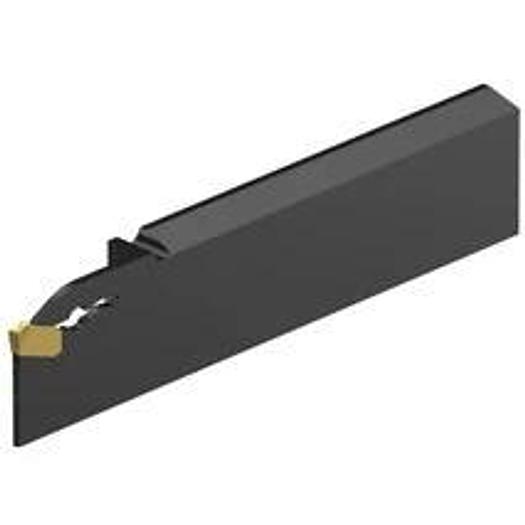

CoroCut QD blades and clamping blocks

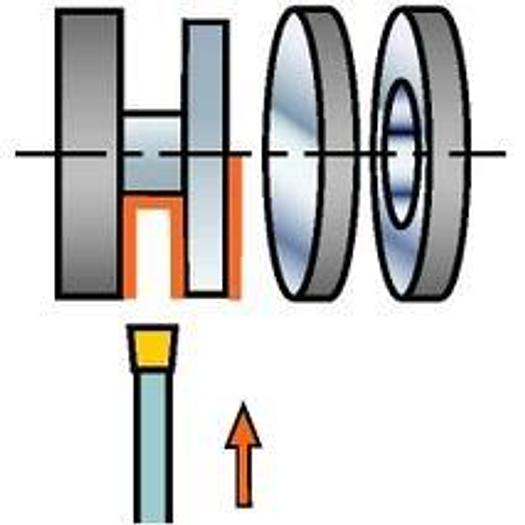

CoroCut® QD cassette for parting off

• Adapter interface machine direction (ADINTMS): Parting off and grooving blade -size 45
• Functional width (WF): 7,675 mm
• Functional height (HF): 45 mm
• Functional length (LF): 225 mm
• Manufacturer's ArtNo: QD-NN2L80C45A
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Coolant pressure (CP): 70 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 2: radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 80 mm
• Minimum cantilever length (OHN): 25 mm
• Shaft height (H): 52.5 mm
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 80 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size L (QD-NL-0800-0004-CM)
• Functional width W: 7,675 mm
• Adapter interface machine direction ADINTM: Parting off and grooving blade -size 45
• Functional length L: 225 mm
