CoroCut QD blades and clamping blocks

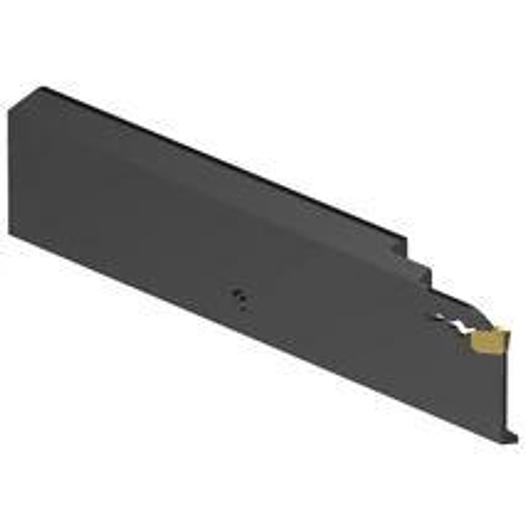

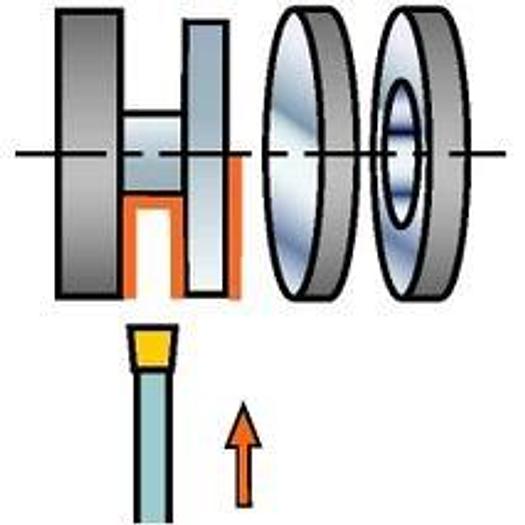

CoroCut® QD cassette for parting off

• Cutting diameter (CUTDIA): 36 mm
• Adapter interface machine direction (ADINTMS): Parting off and grooving blade -size 21L
• Functional width (WF): 2.5 mm
• Functional height (HF): 21.4 mm
• Functional length (LF): 110 mm
• Manufacturer's ArtNo: QD-RL1D18C21D2
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 70 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 2: radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 45 mm
• Minimum cantilever length (OHN): 21 mm
• Shaft height (H): 25.9 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 18 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size D (QD-ND-0150-0001-CM)
• Functional width W: 2.5 mm
• Adapter interface machine direction ADINTM: Parting off and grooving blade -size 21L
• Functional length L: 110 mm
