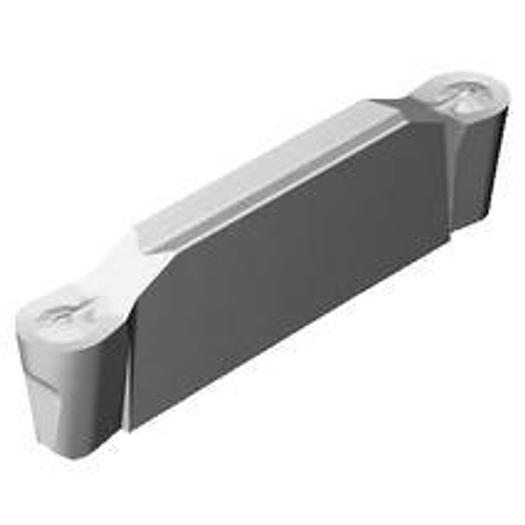

profile turning

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Coating Process Type: PVD
• Corner radius (RE): 2.375 mm
• fnx max: 0.17999999999999999 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.68999999999999995 mm
• fnz min: 0.23000000000000001 mm
• fnz rec: 0.48999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123H2-0475-RO 1105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 25.05 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.01 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 2.2 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 22.9 mm
• Grade: 1105
• Chip breaker, manufacturer designation (CBMD): RO
• Grooving width, nominal dimension (CW): 4.75 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.01 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 195~80 m/min
• vc min: 160~75 m/min
• vc rec: 175~75 m/min
• Material classification level 1(TMC1): M~S
• Corner radius R: 2,375 mm
• Chipbreaker manufacturer designation CBM: RO
• Grade: 1105
• All ISO application areas: M|S
