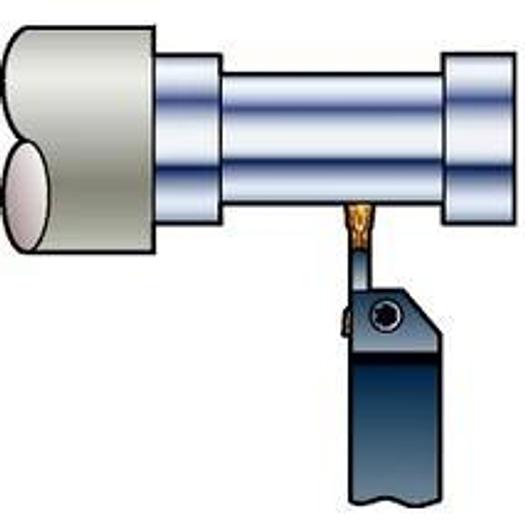

longitudinal turning

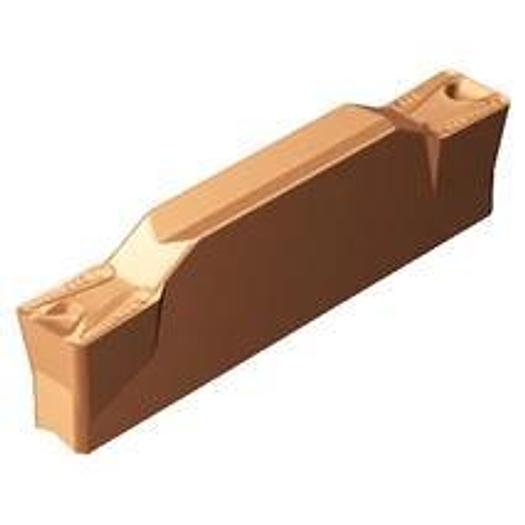

SANDVIK COROCUT longitudinal turning plates -TM

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.16 mm/r
• fnx min: 7.0000000000000007E-2 mm/r
• fnx rec: 0.12 mm/r
• fnz max: 0.25 mm
• fnz min: 0.10000000000000001 mm
• fnz rec: 0.20000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123G2-0300-0004-TM 1145
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 19.84 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 18.4 mm
• Grade: 1145
• Chip breaker, manufacturer designation (CBMD): TM
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 130~165 m/min
• vc min: 125~95 m/min
• vc rec: 105~140 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.4 °
• Grade: 1145
• All ISO application areas: P|M
