Coromant Capto cutting heads

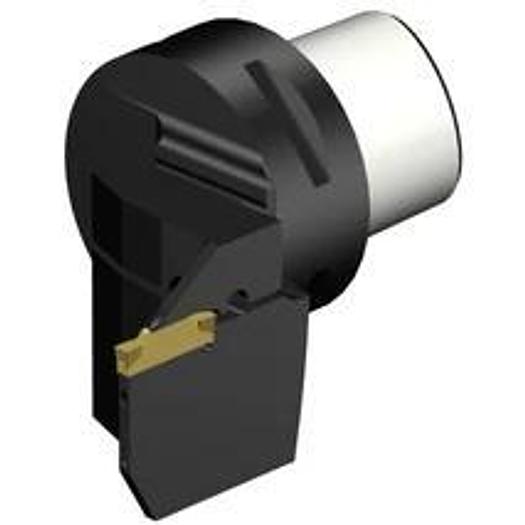

SANDVIK Coromant Capto cutting head CoroCut 1-2 with IKM

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• DCONMS: 50 mm
• Functional width (WF): 35 mm
• Functional length (LF): 70 mm
• Manufacturer item number: C5-RF123L25C35070E
• Manufacturer: SANDVIK COROMANT
• IC Code: 13000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 70 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 25 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size L (N123L2-0800-0008-TF)
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C5
• Cutting depth max CD: 25 mm
• Mounting diameter: 50 mm
• Functional width W: 35 mm
