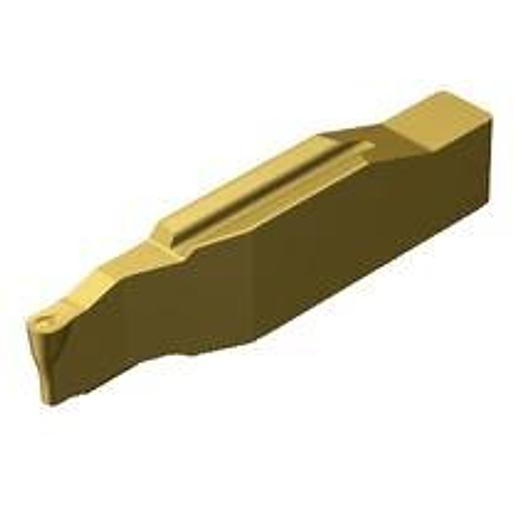

profile turning

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius (RE): 1 mm
• fnx max: 0.13 mm/r
• fnx min: 7.0000000000000007E-2 mm/r
• fnx rec: 0.10000000000000001 mm/r
• fnz max: 0.51000000000000001 mm
• fnz min: 0.20000000000000001 mm
• fnz rec: 0.34999999999999998 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: L123H1-0200-RO S05F
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 25.05 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.01 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 0.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H1L 1.5
• Cutting direction (HAND): L
• Cutting depth, max.(CDX): 5 mm
• Grade: S05F
• Chip breaker, manufacturer designation (CBMD): RO
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.01 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 90 m/min
• vc min: 85 m/min
• vc rec: 85 m/min
• Material classification level 1 (TMC1): S
• Corner radius R: 1 mm
• Chipbreaker manufacturer designation CBM: RO
• Grade: S05F
• All ISO application areas: S
