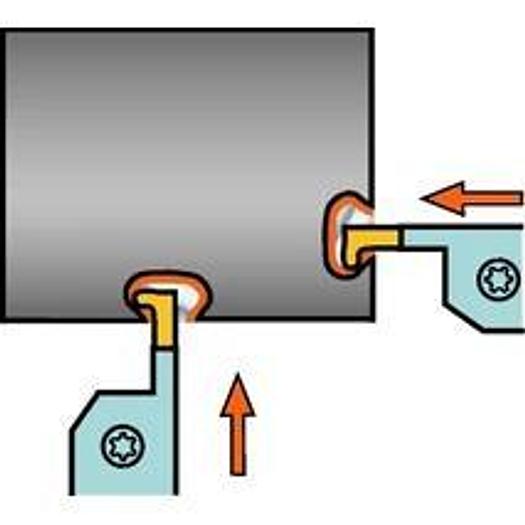

profile turning

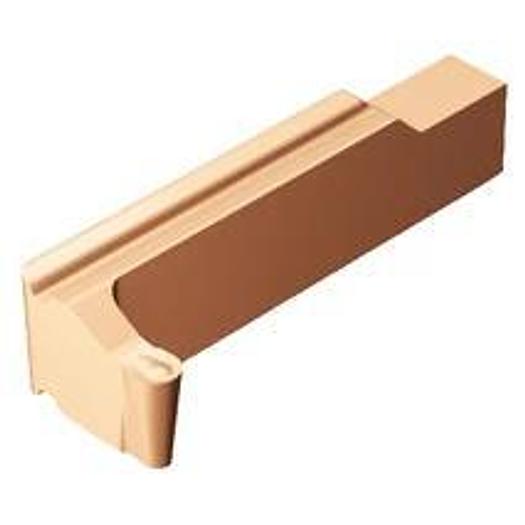

CoroCut® 1-2 cutting system for profile turning

• Axial cutting diameter, min.(DAXIN): 100 mm
• Bore diameter, min.(DMIN1): 44 mm
• Coating Process Type: PVD
• Corner radius (RE): 1 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: RG123H1-0200-RO 1115
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Body angle, machine side (BAMS): 90 deg
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.01 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 0.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size HX1
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 4 mm
• Grade: 1115
• Chip breaker, manufacturer designation (CBMD): RO
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• Lower corner radius tolerance (RETOLL): -0.01 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• Corner radius R: 1 mm
• Chipbreaker manufacturer designation CBM: RO
• Grade: 1115
• All ISO application areas: P|M|K|N|S
