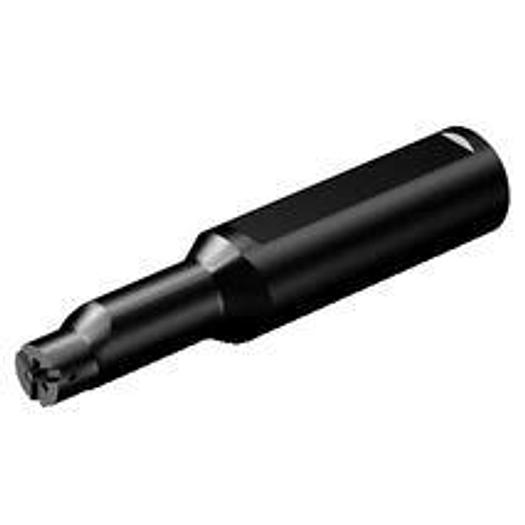

CoroCut MB boring bars

Cylindrical shank for CoroCut® MB adapter

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 3/4
• DCONMS: 19.05 mm
• DCONWS: 11 mm
• Position Assist Property (LOCAP): 1
• Functional length (LF): 89.4 mm
• Manufacturer's ArtNo: MB-A0750-10-11R
• Manufacturer: SANDVIK COROMANT
• IC Code: 14005
• Body diameter (BD): 11 mm
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 25.4 mm
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 25.4 mm
• Minimum cantilever length (OHN): 25.4 mm
• Axial runout setting (ADINTWS): CoroCut MB -size 11
• Cutting direction (HAND): N
• Tool design (BMC): Steel
• Axial runout setting ADINTW: CoroCut MB -size 11
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -inch: 3/4
• Functional length L: 89.4 mm
• Length Body Diameter 1 LB: 25.4 mm
