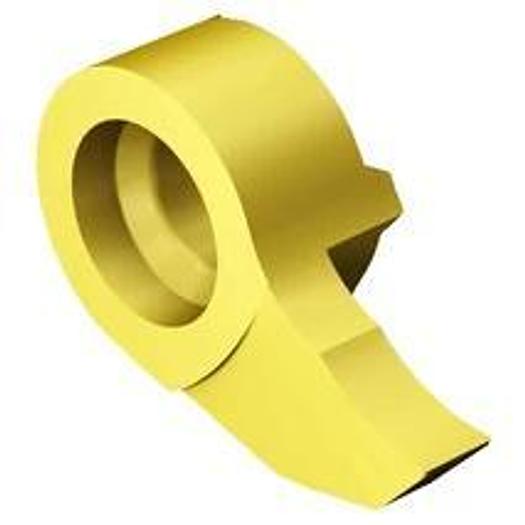

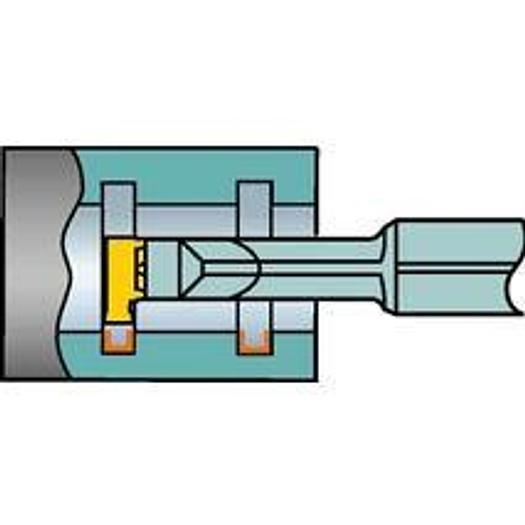

CoroCut MB inserts - grooving

SANDVIK CoroCut MB - plunge cutting insert

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 07
• Application Area: TP
• Bore diameter, min.(DMIN1): 11 mm
• Coating Process Type: PVD
• DCONMS: 7 mm
• Corner chamfer width, left (CHWL): 0.04 mm
• Corner chamfer width, right (CHWR): 0.04 mm
• fnx max: 0.02 mm/r
• fnx min: 0.01 mm/r
• fnx rec: 0.02 mm/r
• Functional width (WF): 6.8 mm
• Functional length (LF): 3.9 mm
• Manufacturer item number: MB-07G150-00-11R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 3.9 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 2.8 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 1.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• vc max: 1900~255~305~65 m/min
• vc min: 190~205~245~50 m/min
• vc rec: 1500~225~265~55 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Bore diameter min DMIN: 11 mm
• Mounting diameter: 7 mm
• All ISO application areas: P|M|N|S
• Recommended variety: P|M|N|S
