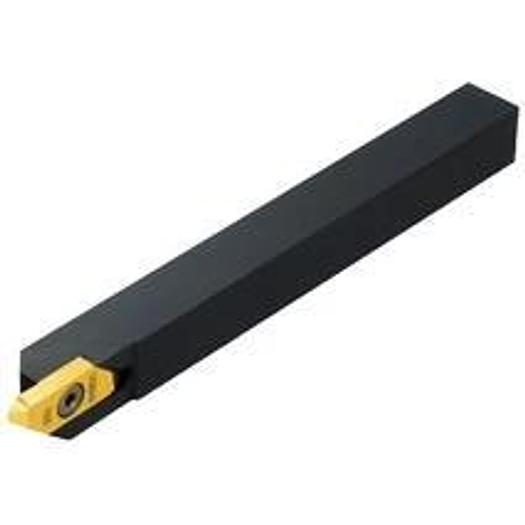

CoroCut XS shank tools

CoroCut® XS shank tool for parting and grooving

• Adapter interface machine direction (ADINTMS): Rectangular shank -metric: 16 x 16
• Torque (TQ): 1.2 Nm
• Functional width (WF): 16 mm
• Functional height (HF): 16 mm
• Functional length (LF): 125 mm
• ManufacturerArtNo: SMALL 1616K 3
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 27 mm
• Shaft width (B): 16 mm
• Shaft height (H): 16 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 8.5 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut XS -size 3L (MACL 3 200-N)
• Functional width W: 16 mm
• Adapter interface machine direction ADINTM: Rectangular shank -metric: 16 x 16
• Functional length L: 125 mm
