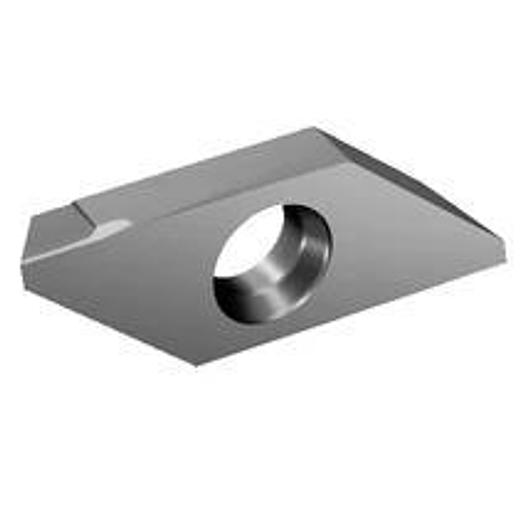

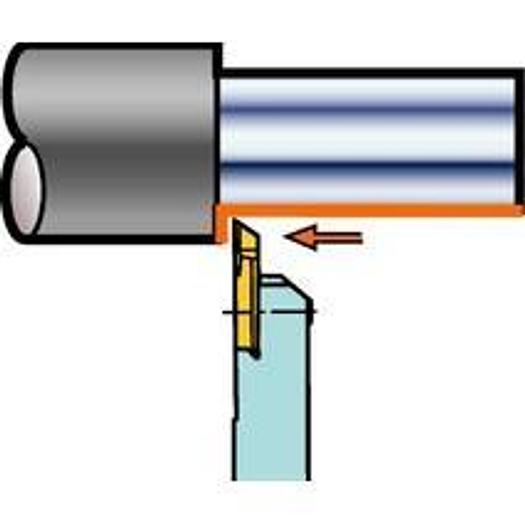

CoroCut XS inserts - longitudinal and back turning

CoroCut® XS indexable insert for turning

• ap max: 1.5~2 mm
• ap min: 5.0000000000000003E-2~8.0000000000000002E-2mm
• ap rec: 0.75~1 mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.1 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fn max: 8.0000000000000002E-2mm/r
• fn min: 0.01~0.02 mm/r
• fn rec: 2.9999999999999999E-2~5.0000000000000003E-2 mm/r
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MAFL 3 010 1105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Number of cutting edges (CEDC): 2
• Cutting length, max. (APMX): 4 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3L
• Cutting direction (HAND): L
• Grade: 1105
• SSC: 3
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 395~75 m/min
• vc min: 390~75 m/min
• vc rec: 395~75 m/min
• Material classification level 1(TMC1): M~S
• Grade: 1105
• All ISO application areas: P|M|N|S
