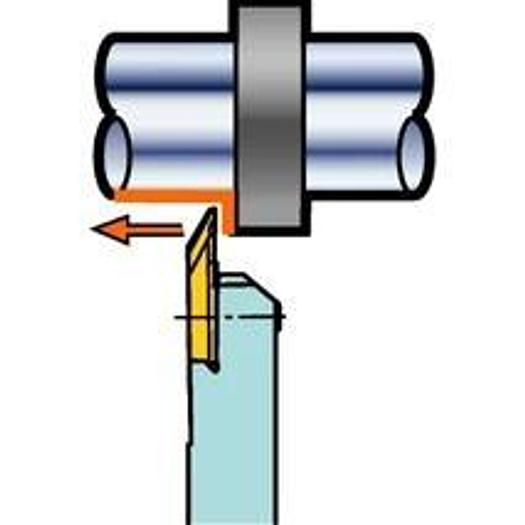

CoroCut XS inserts - longitudinal and back turning

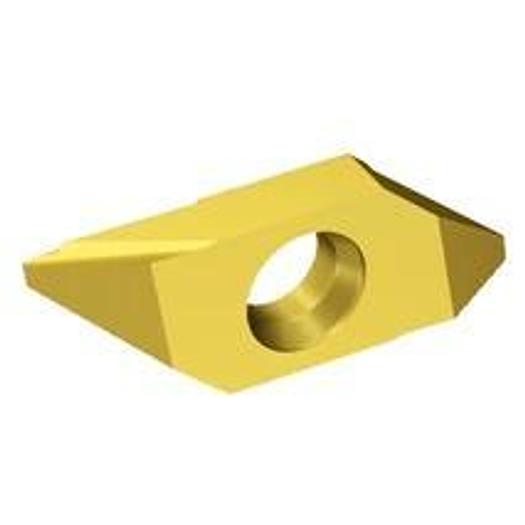

CoroCut® XS indexable insert for turning

• ap max: 3 mm
• ap min: 0.10000000000000001mm
• ap rec: 1.3999999999999999 mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.1 mm
• Setting angle, main cutting edge (KRINS): 59 deg
• fn max: 8.9999999999999997E-2mm/r
• fn min: 0.01 mm/r
• fn rec: 5.0000000000000003E-2 mm/r
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MABR 3 010 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Number of cutting edges (CEDC): 2
• Cutting length, max. (APMX): 4 mm

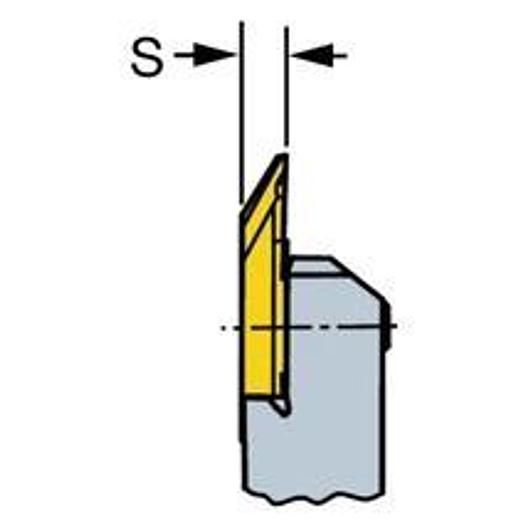

• Cutting edge height (S): 3.175 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3R
• Cutting direction (HAND): R
• Grade: 1025
• SSC: 3
• Substrate Type: WC
• TMC Order: 1~2~3~4
• vc max: 270~325~70~880 m/min
• vc min: 130~155~33~90 m/min
• vc rec: 160~190~40~700 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grade: 1025
• All ISO application areas: P|M|K|N|S
