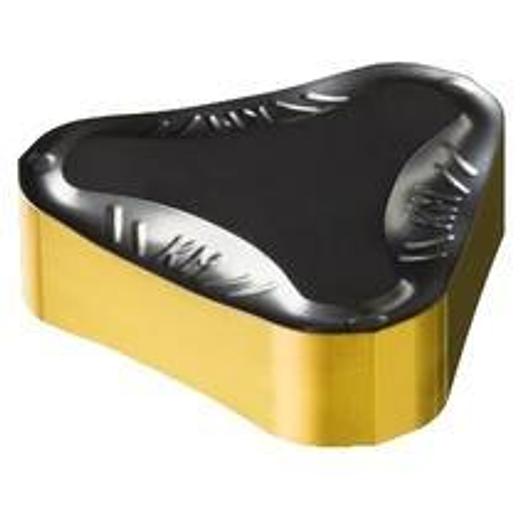

indexable inserts for Sandvik AUTO milling cutters

Auto milling indexable insert for roughing

• Coating Process Type: CVD
• Corner radius (RE): 2 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 45 deg
• Manufacturer item number: TNEF 12 04 AN-KM 3330
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 90 mm
• Cutting edge width (BS): 1.25 mm
• Cutting length, limited (LE): 12 mm
• Cutting length, max. (APMX): 6 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): T
• Cutting insert size and shape (CUTINT_SIZESHAPE): TN1204AN
• Cutting direction (HAND): N
• Grade: 3330
• Chip breaker, manufacturer designation (CBMD): KM
• Substrate Type: WC
• Corner radius R: 2 mm
• Grade: 3330
• Cutting edge height: 4.7625 mm
• Recommended variety: K
• All ISO application areas: K
