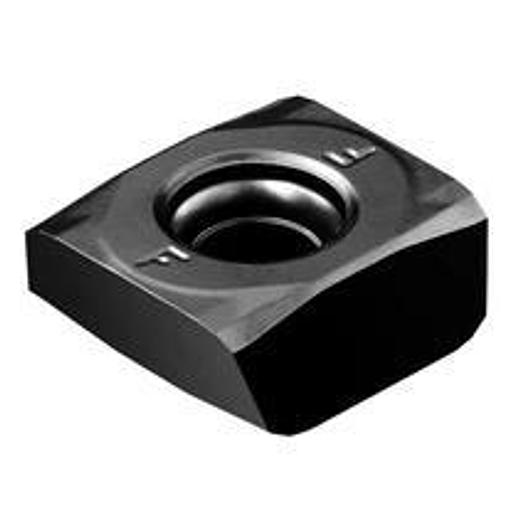

Indexable inserts for finishing with AUTO-AF milling cutters

Auto AF indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 1.8 mm
• Setting angle, main cutting edge (KRINS): 75 deg
• fz max: 0.20999999999999999 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.16 mm
• Manufacturer's ArtNo: N260.8-1204-L 3040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 150 mm
• Cutting edge width (BS): 2.5 mm
• Cutting length, limited (LE): 1 mm
• Cutting length, max. (APMX): 1 mm
• Cutting edge height (S): 12.7 mm
• Cutting plate width (W1): 4.7625 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Mill AutoAF -N260.8 1204-L
• Cutting direction (HAND): N
• Grade: 3040
• Chip breaker, manufacturer designation (CBMD): L
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 220~285~45 m/min
• vc min: 175~225~32 m/min
• vc rec: 190~250~37 m/min
• Material classification level 1 (TMC1): H~K~P
• Cutting insert size and shape_CUTINT_SIZESHAP: Mill AutoAF -N260.8 1204-L
• Corner radius R: 1.8 mm
• Grade: 3040
• All ISO application areas: P|K|H
