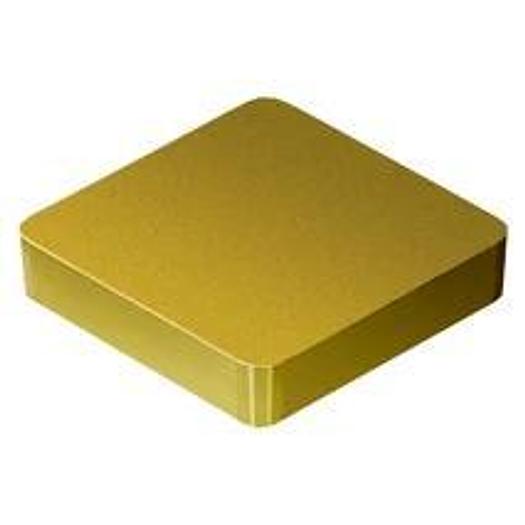

Indexable inserts for finishing with AUTO-FS milling

Auto FS indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner chamfer width (CHW): 1.2 mm
• Corner chamfer angle (KCH): 45 deg
• Corner radius (RE): 0.5 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.29999999999999999 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.17000000000000001 mm
• Manufacturer's ArtNo: SBEN 12 03 ZZ K20W
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 2960 mm
• Cutting edge width (BS): 10.3 mm
• Cutting length, limited (LE): 8 mm
• Cutting length, max. (APMX): 8 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SB1203ZZ
• Cutting direction (HAND): N
• Grade: K20W
• Substrate Type: WC
• TMC Order: 1
• vc max: 195 m/min
• vc min: 130 m/min
• vc rec: 170 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 0.5 mm
• Grade: K20W
• All ISO application areas: K
