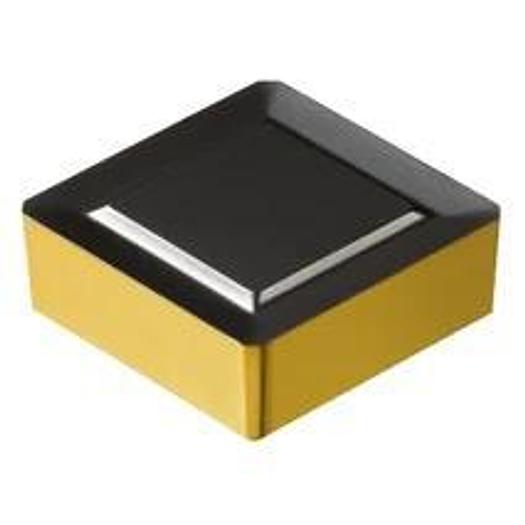

Indexable inserts for finishing with AUTO-FS milling

Auto FS indexable insert for milling

• Coating Process Type: CVD
• Corner chamfer width (CHW): 0.56 mm
• Corner chamfer angle (KCH): 45 deg
• Corner radius (RE): 0.5 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer's ArtNo: SBEX 12 04 ZZ-11 3330
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 0.7 mm
• Cutting length, limited (LE): 8 mm
• Cutting length, max. (APMX): 8 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SB1204ZZ
• Cutting direction (HAND): N
• Grade: 3330
• Substrate Type: WC
• Corner radius R: 0.5 mm
• Grade: 3330
• Recommended variety: K
• All ISO application areas: K
