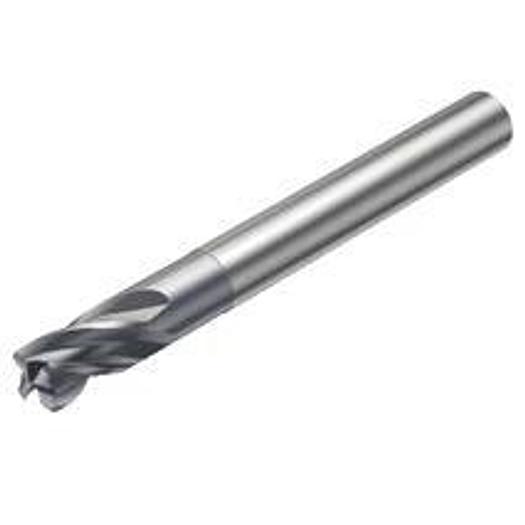

End mill square shape, with corner radius and center cutting edge - inch version

CoroMill® end mills for hard machining

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1/4
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6.35 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 1,588 mm
• Immersion angle, max.(RMPX): 2 deg
• Functional diameter (DCF): 3,174 mm
• Functional length (LF): 76.2 mm
• Neck diameter (DN): 6.25 mm
• Manufacturer item number: RA216.24-1630DAK04G 1610
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 2
• Usable length (LU): 25.4 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 6.35 mm
• Cutting length, max. (APMX): 6.35 mm
• Side rake angle (GAMF): 1.5 deg
• Grade: 1610
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 6.35 mm
• Cutting length: 6.35 mm
• Functional length L: 76.2 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: H
