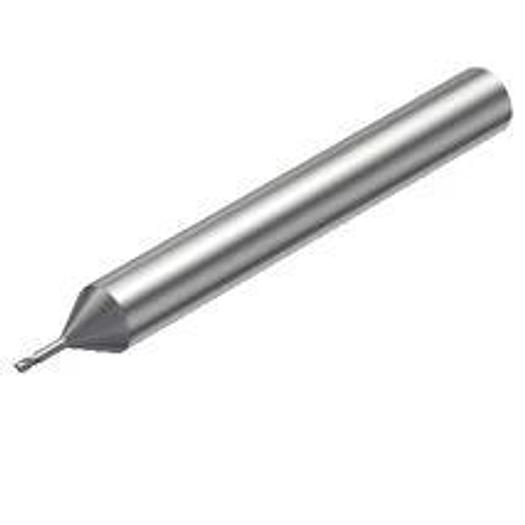

End mill square shape, without corner radius, with center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for microbea

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 0.8 mm
• Functional length (LF): 57 mm
• Neck diameter (DN): 0.76 mm
• Manufacturer item number: R216.32-00830-AJ08G 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD1): 0.76 mm
• Body cone setting angle (BHTA2): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB1): 8.2 mm
• Length Body Diameter 1(LB2): 12.7 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 8 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 0.8 mm
• Cutting length, max. (APMX): 0.8 mm
• Side rake angle (GAMF): 1.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 0.8 mm
• Cutting length: 0.8 mm
• Functional length L: 57 mm
• Number of effective cutting edges on the circumference: 2

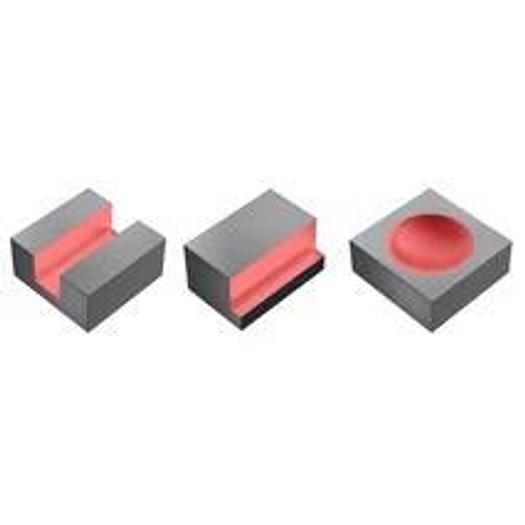

• All ISO application areas: P|M|K|S
