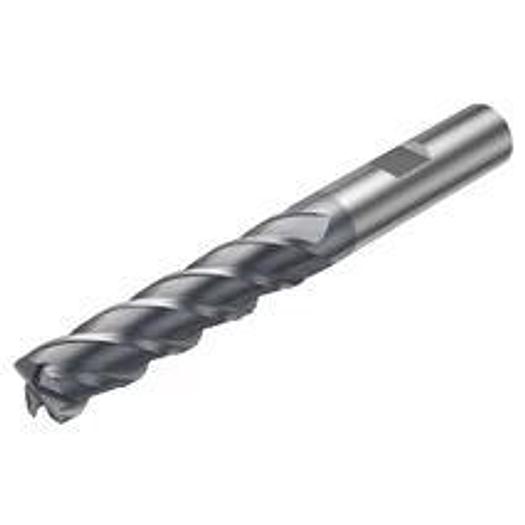

End mill square shape, without corner radius, with center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for high-feed side

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 25
• Number of effective cutting edges, circumferential (ZEFP): 4
• Coating Process Type: PVD
• DCONMS: 25 mm
• Helix angle (FHA): 37 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner chamfer width (CHW): 0.25 mm
• Corner chamfer angle (KCH): 45 deg
• Plunge angle, max.(RMPX): 4 deg
• Functional diameter (DCF): 24.5 mm
• Functional length (LF): 178 mm
• Manufacturer's ArtNo: 2P370-2500-PB 1740
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 1
• Usable length (LU): 100 mm
• Back rake angle (GAMP): 7.5 deg
• Cutting diameter (DC): 25 mm
• Cutting length, max. (APMX): 100 mm
• Side rake angle (GAMF): 10 deg
• Grade: 1740
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Lower cutting diameter tolerance (DCTOLL): -0.084 mm
• Center cutting ability (CCC): 1
• Cutting diameter: 25 mm
• Cutting length: 100 mm
• Functional length L: 178 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: P|M|K|S
