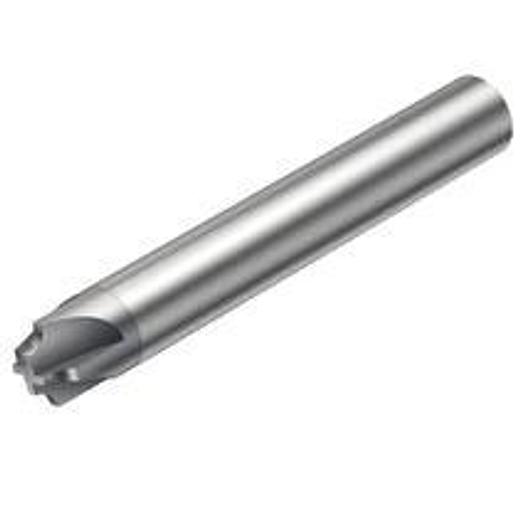

End mills for chamfering, concave design

SANDVIK PLURA solid carbide milling cutters

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 16
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 16 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 92 mm
• Manufacturer item number: 1U000-0600-500-XA 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Profile radius 1(PRFRAD): 5 mm
• Cutting diameter (DC): 6 mm
• Cutting diameter, max. (DCX): 16 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 6 mm
• Mounting diameter: 16 mm
• Number of effective cutting edges on the circumference: 4
• Functional length L: 92 mm
• All ISO application areas: P|M|K|N|S|H
