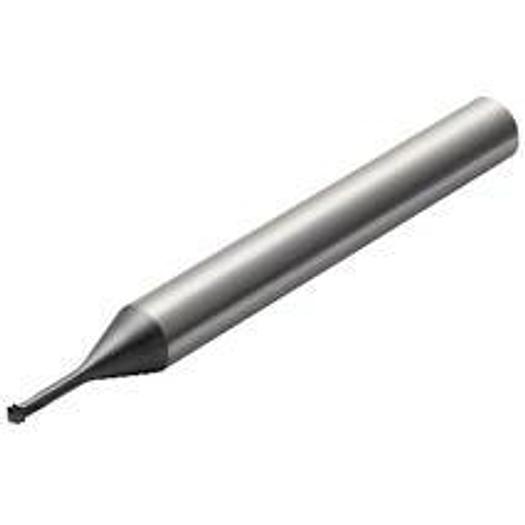

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill® Plura solid carbide end mills for thread milling

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 8
• Number of effective cutting edges, circumferential (ZEFP): 3
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 8 mm
• Helix angle (FHA): 15 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Setting angle (KAPR): 30 deg
• Functional length (LF1): 67.37 mm
• Functional length (LF2): 68 mm
• Thread type (THFT): M60
• Thread cutting part, application (TTP): INT
• Thread pitch (TP): 1.25 mm
• Size of thread diameter (FTDZ): M 8
• Neck diameter (DN): 4.7 mm
• Manufacturer item number: R217.13-064125AC24P 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HC
• Body diameter (BD): 4.7 mm
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Useful length (LU): 25,875 mm
• Cutting diameter (DC1): 6.4 mm
• Cutting diameter (DC2): 3.45 mm
• Cutting length, max. (APMX): 3,125 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 25,875 mm
• Body diameter B: 4.7 mm
• Cutting length: 3.125 mm
• All ISO application areas: P|M|K|N|S|O
