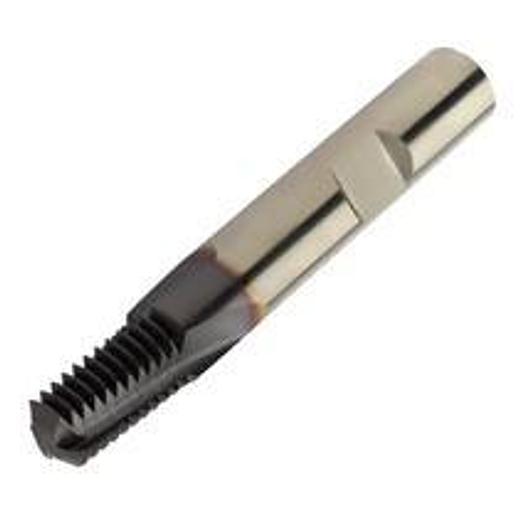

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill® Plura solid carbide end mills for thread milling

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 20
• Number of effective cutting edges, circumferential (ZEFP): 5
• Coating Process Type: PVD
• DCONMS: 20 mm
• Helix angle (FHA): 10 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Setting angle (KAPR): 45 deg
• Functional length (LF1): 89.48 mm
• Functional length (LF2): 92 mm

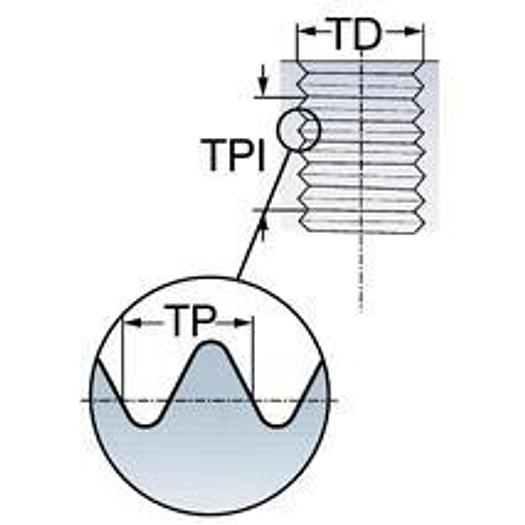

• Number of threads per inch (TPI): 11.5
• Thread type (THFT): NPT60
• Thread cutting part, application (TTP): INT
• Neck diameter (DN): 19.9 mm
• Manufacturer item number: R217.55-199115AC27N 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Effective length (LU): 27.12 mm
• Cutting diameter (DC1): 19.9 mm
• Cutting diameter (DC2): 9.8 mm
• Cutting diameter, max. (DCX): 19 mm
• Cutting length, max. (APMX): 27.12 mm
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 27.12 mm
• Cutting length: 27.12 mm
• All ISO application areas: P|M|K|S
