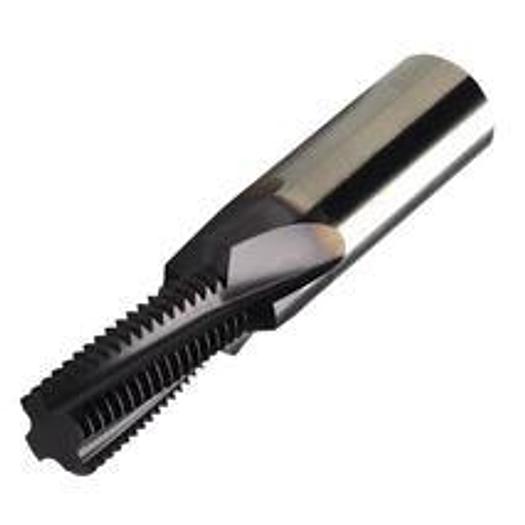

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill® Plura solid carbide end mills for thread milling

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
• Number of effective cutting edges, circumferential (ZEFP): 3
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6 mm
• Helix angle (FHA): 10 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF1): 57 mm
• Functional length (LF2): 48.2 mm
• Thread type (THFT): M60
• Thread cutting part, application (TTP): INT
• Thread pitch (TP): 0.7 mm
• Thread diameter size (FTDZ): M4X0.70
• Neck diameter (DN): 6 mm
• Manufacturer item number: R217.13C032070CC08K 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD): 6 mm
• Coolant pressure (CP): 20 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 8.8 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 9.5 mm
• Cutting diameter (DC1): 3.2 mm
• Cutting diameter, max. (DCX): 6 mm
• Cutting length, max. (APMX): 8.8 mm
• SIGCSK: 90 deg
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Working length: 9.5 mm
• Body diameter B: 6 mm
• Cutting length: 8.8 mm
