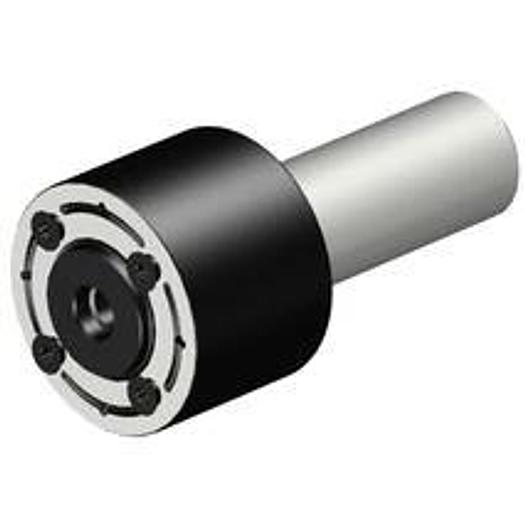

CoroMill QD milling cutter holders

Cylindrical shank adapter on milling arbor with round drivers

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1
• Balanced version (BBD): 1
• DCONMS: 25.4 mm
• DCONWS: 25.4 mm
• Torque (TQ): 3.9 Nm
• Functional length (LF): 100 mm
• Manufacturer's article number: CY25A-Y25-050-100
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD): 50 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 100 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -inch: Y25
• Tool design (BMC): Steel
• Adapter interface Machine direction ADINTM: Cylindrical shank without clamping features -inch: 1
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -inch: Y25
• Mounting diameter: 25.4 mm
• Length Body Diameter 1 L: 100 mm
