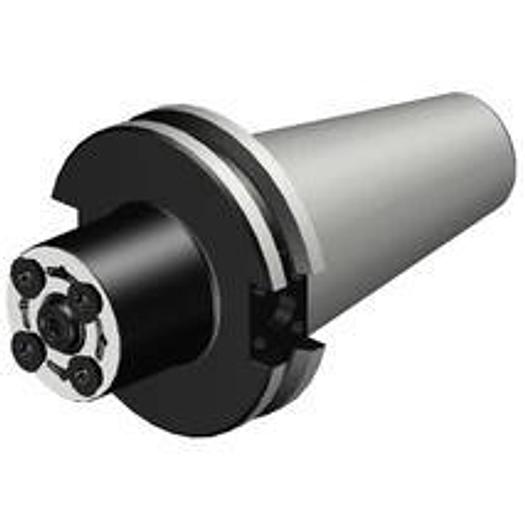

CoroMill QD milling cutter holders

CAT-V adapter on milling mandrel with round drivers

• Adapter interface machine direction (ADINTMS): CAT-V -AD/B central/flange coolant - CAT-V40
• Retaining bolt thread size (CRKS): 5/8"-11
• Balanced version (BBD): 1
• DCONWS: 10 mm
• DFC: 44.45 mm
• Functional length (LF): 45 mm
• Manufacturer's ArtNo: V40-X10-032-045
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 32 mm
• Body diameter (BD2): 63.5 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 24.5 mm
• Length Body Diameter 1(LB2): 45 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X10
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X10
• Adapter interface machine direction ADINTM: CAT-V -AD/B central/flange coolant - CAT-V40
• Functional length L: 45 mm
