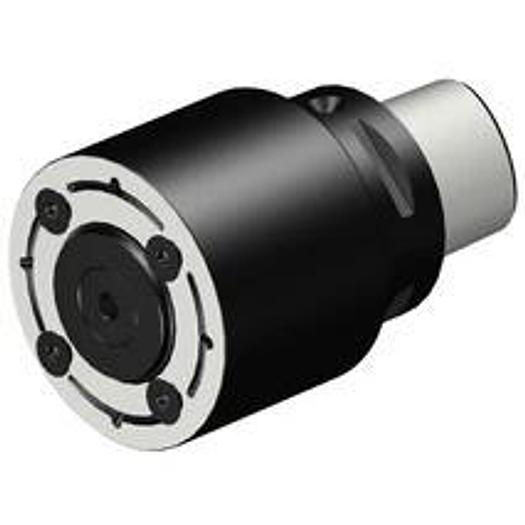

SANDVIK COROMANT C5-Y31-063-070 – CoroMill QD Coromant Capto C5 Milling Arbor, 31.75 mm, Balanced, 70 mm – New 2024

The SANDVIK COROMANT C5-Y31-063-070 is a new, 2024 model milling arbor designed for CoroMill QD applications. Featuring a Coromant Capto C5 machine-side interface, the arbor is tailored for industrial machining systems requiring precision and modular toolholding. The machine-side diameter is 50mm, with a workpiece-side interface being a Y31 disc mill arbor connection, measuring 31.75mm. Crafted from steel, it promises durability and adherence to the ISO 26623-1 standard. This holder is well-suited for use in modular milling toolholding assemblies, enabling a secure connection between the machine-side interface and suitable disc milling cutters. Its balanced version ensures consistent and precise performance during operations. The functional length measures 70mm, while the body diameter is 63mm. Coolant is supported at a pressure up to 80 bar, enhancing performance by providing efficient heat removal during intensive milling tasks. Perfect for professional CNC milling tasks and compatible with four-bolt cutting assemblies, the SANDVIK COROMANT C5-Y31-063-070 offers 6.4 Nm torque for reliable clamping and stability. While specific cutters, inserts, and accessories might not be included, its robust design allows for versatile application in industrial machining environments, precision engineering, and machine shops.
