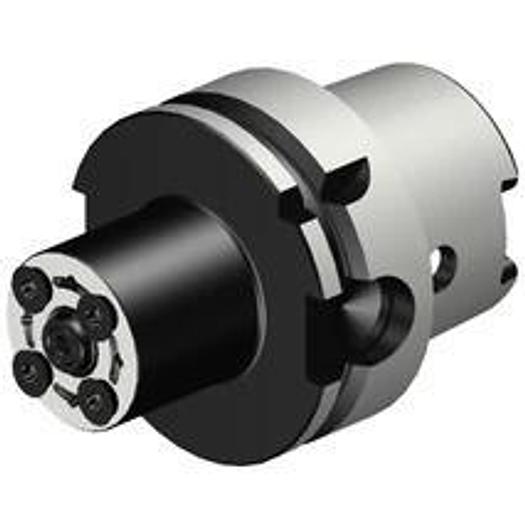

CoroMill QD milling cutter holders

HSK adapter on milling mandrel with round drivers

• Adapter interface machine direction (ADINTMS): HSK -A -size 63
• Balanced version (BBD): 1
• DCONMS: 63 mm
• DCONWS: 10 mm
• DFC: 48.01 mm
• Torque (TQ): 6.4 Nm
• Functional length (LF): 55 mm
• Manufacturer's ArtNo: HA06-X10-032-055
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 32 mm
• Body diameter (BD2): 63 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 28 mm
• Length Body Diameter 1(LB2): 55 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X10
• Standard Document (STDLET): A
• Standard number(STDNO): ISO12164-1
• Tool design (BMC): Steel
• Mounting diameter DCONWS: 10 mm
• Adapter interface machine direction ADINTM: HSK -A -size 63
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X10
• Length Body Diameter 1 LB: 28 mm
• Functional diameter DFC: 48.01 mm
