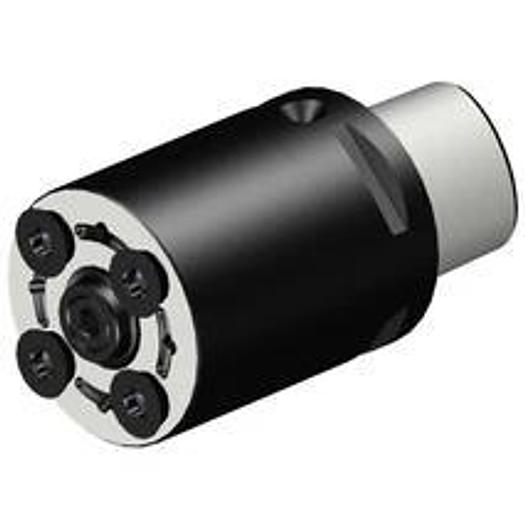

CoroMill QD milling cutter holders

Coromant Capto® adapter on milling arbor with round drivers

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C3
• Balanced version (BBD): 1
• DCONMS: 32 mm
• DCONWS: 10 mm
• DFC: 22 mm
• Torque (TQ): 6.4 Nm
• Functional length (LF): 40 mm
• Manufacturer's ArtNo: C3-X10-032-040
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD): 32 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 40 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X10
• Standard number(STDNO): ISO26623-1
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C3
• Mounting diameter: 32 mm
• Functional length L: 40 mm
• Mounting diameter DCONWS: 10 mm
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X10
