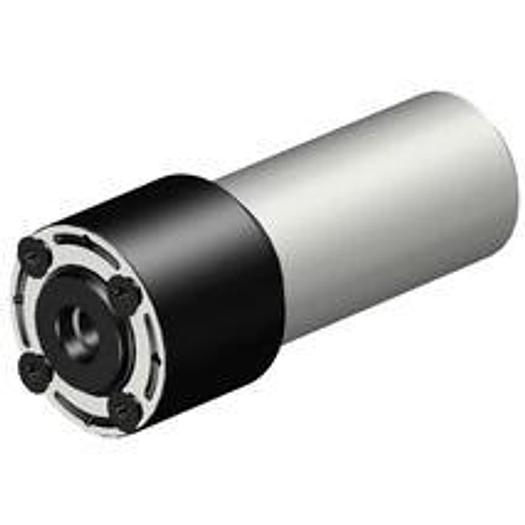

CoroMill QD milling cutter holders

Cylindrical shank adapter on milling arbor with round drivers

Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 32.0

Balanced version (BBD): 1

DCONMS: 32 mm

DCONWS: 22 mm

Torque (TQ): 3.9 Nm

Functional length (LF): 95 mm

Manufacturer's ArtNo: CY32-X22-040-095

Manufacturer: SANDVIK COROMANT

IC Code: 19000

Body diameter (BD): 40 mm

Coolant pressure (CP): 80 bar

Coolant outlet (CXSC): 3: axial inclined exit

Coolant inlet (CNSC): 1: axial concentric entry

Length Body Diameter 1(LB): 95 mm

Life Cycle Status (LCS): 20

Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X22

Tool design (BMC): Steel

Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 32.0

Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X22

Mounting diameter: 32 mm

Length Body Diameter 1 L: 95 mm
