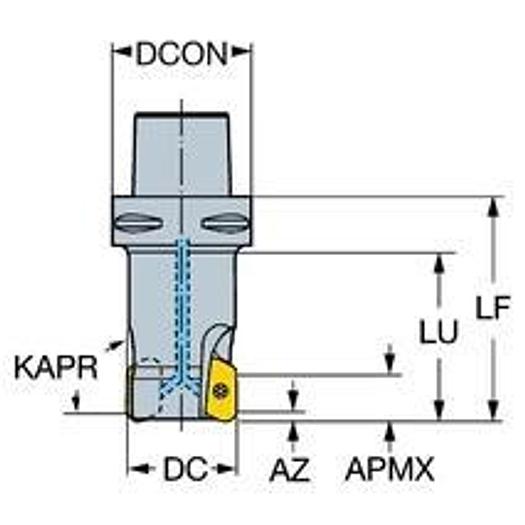

CoroMill 790 Corner face / end mill 90° - Metric version

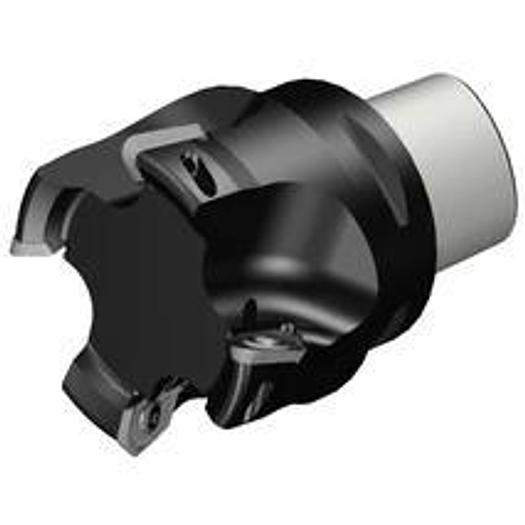

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C8
• Number of cutting parts (CICT): 4
• Number of effective cutting edges, circumferential (ZEFP): 4
• DCONMS: 80 mm
• DFC: 55 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 14000 1/min
• Immersion depth, max.(AZ): 3 mm
• Immersion angle, max.(RMPX): 3 deg
• Functional length (LF): 85 mm
• Manufacturer's article number: R790-100C8S1-22M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 100 mm
• Cutting length, max. (APMXEFW): 6.5 mm
• Cutting length, max. (APMXFFW): 18 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 22 (R790-2205)
• Tool design (BMC): Steel
• Cutting diameter: 100 mm
• Functional length L: 85 mm
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C8
