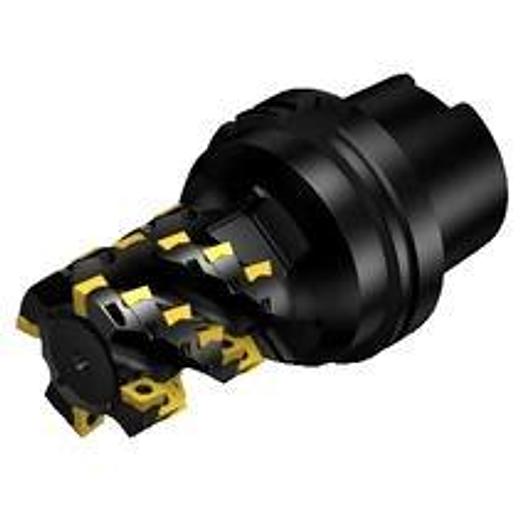

CoroMill 690 Shell End Mills - Metric Version

CoroMill® 690 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): HSK -A -size 125
• Number of effective cutting edges, circumferential (ZEFP): 4
• DCONMS: 125 mm
• DFC: 95,016 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 180 mm
• Manufacturer item number: 690-063HA12-10105H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 110 mm
• Cutting diameter (DC): 63 mm
• Cutting length, max. (APMXFFW): 105 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard number(STDNO): ISO12164-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 10E (690-100508E)
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: HSK -A -size 125
• Cutting diameter: 63 mm
• Cutting length max APMXFF: 105 mm
• Functional length L: 180 mm
