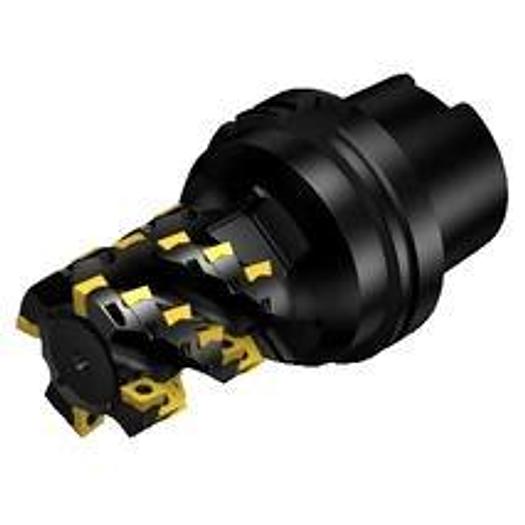

CoroMill 690 Shell End Mills - Metric Version

CoroMill® 690 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): HSK -A -size 125
• Number of effective cutting edges, circumferential (ZEFP): 4
• DCONMS: 125 mm
• DFC: 95,016 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 162 mm
• Manufacturer's ArtNo: 690-080HA12-1484H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 30
• Usable length (LU): 88 mm
• Cutting diameter (DC): 80 mm
• Cutting length, max. (APMXFFW): 84 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard number(STDNO): ISO12164-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 14E (690-140608E)
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: HSK -A -size 125
• Cutting diameter: 80 mm
• Cutting length max APMXFF: 84 mm
• Functional length L: 162 mm
