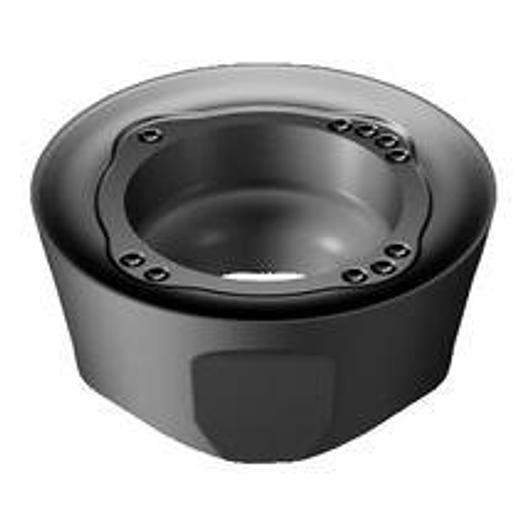

CoroMill 600 indexable inserts

CoroMill® 600 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius (RE): 5 mm
• Inscribed circle (IC): 10 mm
• fz max: 0.34999999999999998 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.20000000000000001 mm
• Manufacturer's ArtNo: 600-1045M-ML S30T
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, max. (APMX): 5 mm
• Cutting edge height (S): 4.5 mm
• Cutting insert shape (SC): R
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 600 -size 1045
• Cutting direction (HAND): N
• Grade: S30T
• Chip breaker, manufacturer designation (CBMD): ML
• Substrate Type: WC
• TMC Order: 1
• vc max: 250 m/min
• vc min: 105 m/min
• vc rec: 160 m/min
• Material classification level 1 (TMC1): M
• Corner radius R: 5 mm
• Grade: S30T
