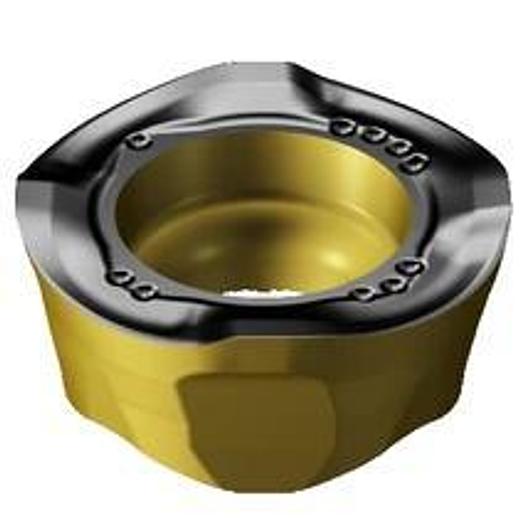

CoroMill 600 indexable inserts

CoroMill® 600 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 5 mm
• Inscribed circle (IC): 10 mm
• fz max: 0.55000000000000004 mm
• fz min: 0.14999999999999999 mm
• fz rec: 0.34999999999999998 mm
• Manufacturer's ArtNo: 600R-1045M-MM 4240
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 100 mm
• Cutting edge width (BS): 0.8 mm
• Cutting length, max. (APMX): 3.6 mm
• Cutting edge height (S): 4.5 mm
• Cutting insert shape (SC): R
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 600 -size 1045
• Cutting direction (HAND): R
• Grade: 4240
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1
• vc max: 165 m/min
• vc min: 70 m/min
• vc rec: 105 m/min
• Material classification level 1 (TMC1): M
• Corner radius R: 5 mm
• Grade: 4240
• All ISO application areas: M
