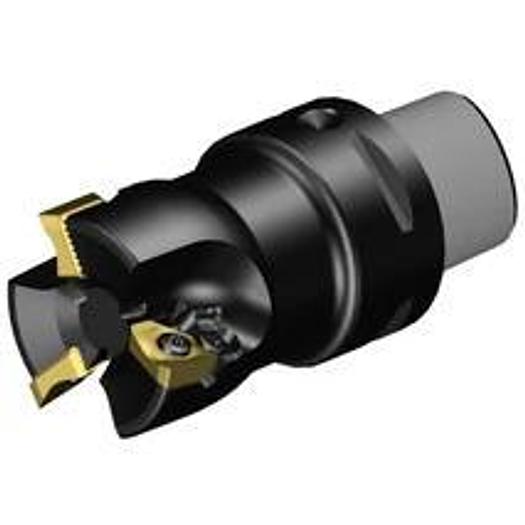

CoroMill 590 Century face milling cutter - metric version

CoroMill® Century shoulder milling cutters

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
• Number of cutting parts (CICT): 3
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 40 mm
• DFC: 28 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 39000 1/min
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: R590-040C4-11M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 40 mm
• Cutting diameter (DC): 40 mm
• Cutting length, max. (APMXFFW): 11 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 590 -size 11 (R590-1105)
• Tool design (BMC): Steel
• Cutting diameter: 40 mm
• Functional length L: 63 mm
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C4
