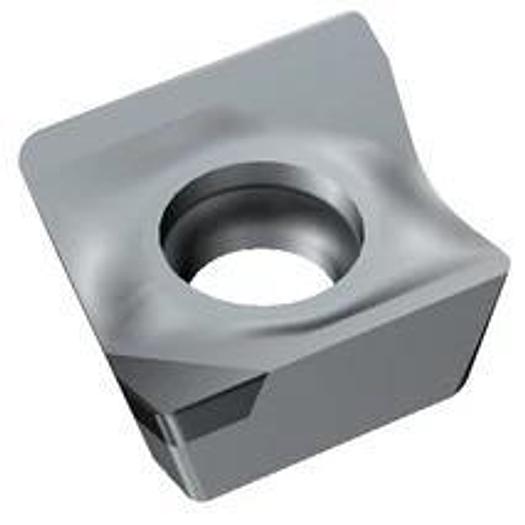

CoroMill 590 Century indexable inserts

CoroMill® Century insert for milling

• Application Area: MU
• Corner chamfer width (CHW): 1 mm
• Corner chamfer angle (KCH): 30 deg
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.20000000000000001~0.29999999999999999mm
• fz min: 0.10000000000000001~7.0000000000000007E-2mm
• fz rec: 0.12~0.20000000000000001mm
• Manufacturer item number: L590-1105H-ZC2-KL CB50
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 200 mm
• Cutting edge width (BS): 2,347 mm
• Cutting length, limited (LE): 3 mm
• Cutting length, max. (APMX): 1.2 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): L
• Grade: CB50
• Chip breaker, manufacturer designation (CBMD): KL
• Substrate Type: CBN
• TMC Order: 1~2
• vc max: 155~910 m/min
• vc min: 110~490 m/min
• vc rec: 140~670 m/min
• Material classification level 1(TMC1): H~K
• Grade: CB50
• All ISO application areas: K
