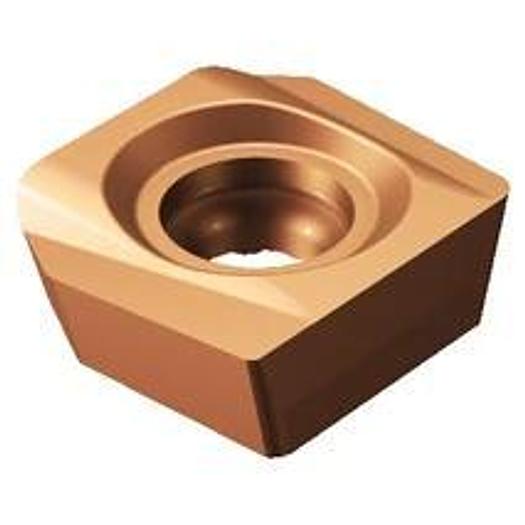

CoroMill 590 Century indexable inserts

CoroMill® Century insert for milling

• Coating Process Type: PVD
• Eckenradius(RE): 0.4 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• HerstArtNr: R590-110504H-PTW 1030
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 7 mm
• Cutting length, limited (LE): 2 mm
• Blade length, max. (APMX): 2 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): R
• Luck(Grade): 1030
• Chip breaker, manufacturer designation (CBMD): PTW
• Substrate Type: WC
• Black Grade: 1030
• All ISO application areas: P|M|K|S
