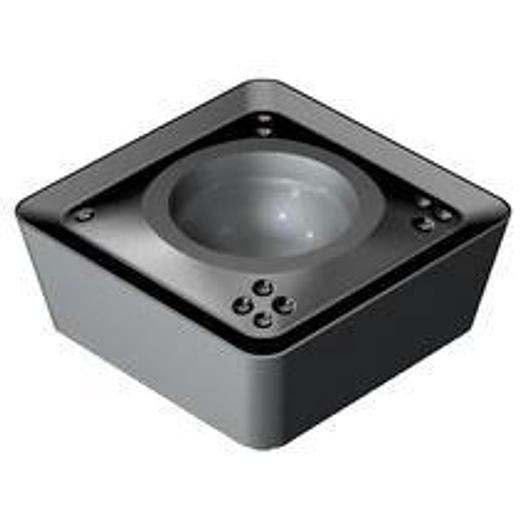

CoroMill 495 indexable inserts

CoroMill® 495 indexable insert for milling

• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Inscribed circle (IC): 9 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer's ArtNo: 495-09T3M-MM 1040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 7.4 mm
• Cutting edge height (S): 3.51 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 495 -size 09T3M
• Cutting direction (HAND): N
• Grade: 1040
• Chip breaker, manufacturer designation (CBMD): ML
• Substrate Type: WC
• Corner radius R: 0.8 mm
• Grade: 1040
• All ISO application areas: M|S
