CoroMill 490 face and shoulder milling cutters - inch version

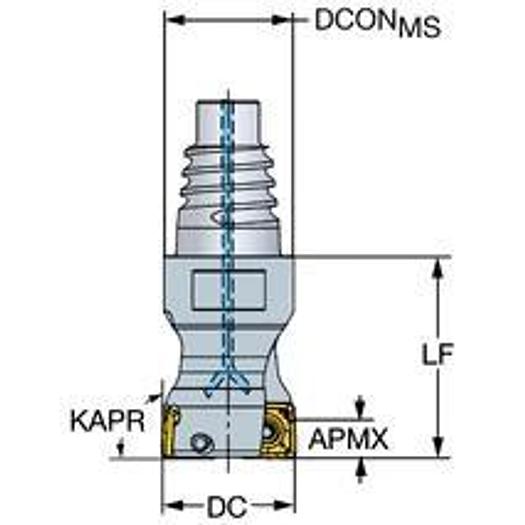

CoroMill® 490 head for shoulder milling

• Adapter interface machine direction (ADINTMS): Coromant EH -inch - E25
• Number of cutting parts (CICT): 3
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 24.5 mm
• DFC: 17.66 mm
• Torque (TQ): 1.2 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 40000 1/min
• Functional length (LF): 35 mm
• Manufacturer's ArtNo: A490-025EH25-08M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 25.4 mm
• Cutting length, max. (APMXFFW): 5.4864 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 08 (490R-08T308..)
• Tool design (BMC): Steel
• Cutting diameter: 25.4 mm
• Functional length L: 35 mm
• Adapter interface machine direction ADINTM: Coromant EH -inch - E25
