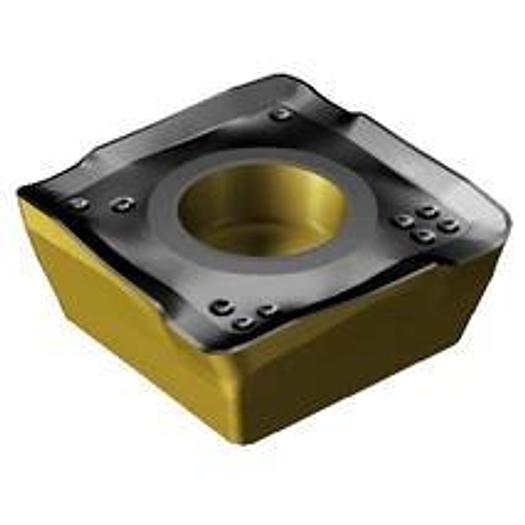

CoroMill 490 indexable inserts

CoroMill® 490 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 0.8 mm
• Inscribed circle (IC): 13.8 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.25 mm
• fz min: 0.12 mm
• fz rec: 0.17000000000000001 mm
• Manufacturer's ArtNo: 490R-140408M-PM 3330
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 2 mm
• Cutting length, limited (LE): 10.3 mm
• Cutting length, max. (APMX): 10 mm
• Cutting edge height (S): 3.9 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 490 -1404
• Cutting direction (HAND): R
• Grade: 3330
• Chip breaker, manufacturer designation (CBMD): PM
• Substrate Type: WC
• TMC Order: 1
• vc max: 265 m/min
• vc min: 250 m/min
• vc rec: 255 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 0.8 mm
• Grade: 3330
• Recommended variety: K
• All ISO application areas: K
