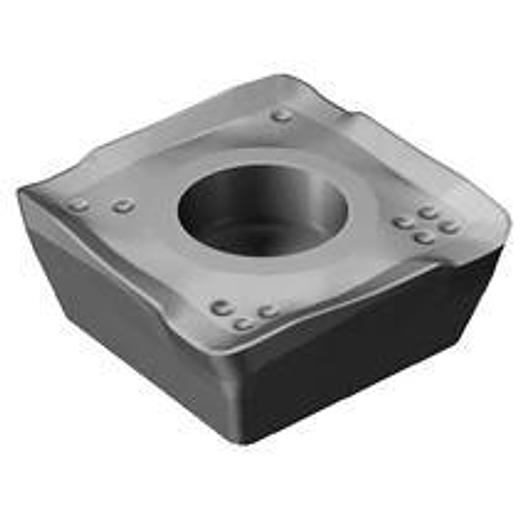

CoroMill 490 indexable inserts

SANDVIK CoroMill 490,Insert,Milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Inscribed circle (IC): 8.5 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.20000000000000001 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.14999999999999999~0.16mm
• Manufacturer's ArtNo: 490R-08T308M-PM 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1.2 mm
• Cutting length, limited (LE): 5.6 mm
• Cutting length, max. (APMX): 5.5 mm
• Cutting edge height (S): 3.3 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 490 -08T3
• Cutting direction (HAND): R
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PM
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 265~280 m/min
• vc min: 255~265 m/min
• vc rec: 260~275 m/min
• Material classification level 1 (TMC1): M~P
• Corner radius R: 0.8 mm
• Grade: 1130
• All ISO application areas: P|M|N|S|H
